产品详情:拾音器专用压电电缆
Piezo cable is another form of piezo polymer sensors. Designed as a coaxial cable, the Piezo polymer is the dielectric between the center core and the outer braid. When the cable is compressed or stretched, a charge or voltage is generated proportional to the stress.
Piezo cable has a number of advantages in certain applications. Due to its coaxial design, the cable is selfshielded,allowing its use in a high EMI environment. The piezo cable can be spliced to passive coax, using standard coax splice techniques. It is extremely rugged and will stand up to heavy loads. Its linear format makes it ideal for monitoring large areas.

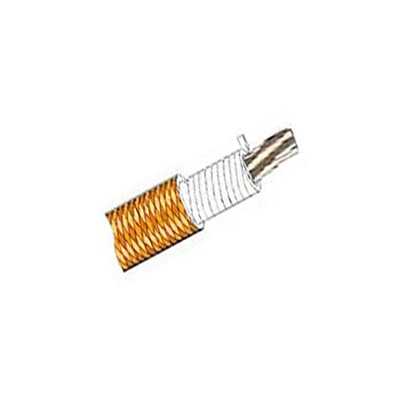

In the cable construction, two narrow ribbons of PVDF film are helically wound around the inner conductor, which comprises 20 awg stranded silver-plated copper wire. The cable is then braided, and jacketed with an extruded high-density polyethylene.
The cable is available in short lengths (in multiples of 1 m), or as single cut lengths wound on spools.
类 型:电缆
外 径:1.6mm
电 容:950pF/m
耗 散:0.016@1kHz
供电电源:无源
工作温度:-
压电常数:20pC/N
特 点:连接简单,电压相应灵敏度好,耐温达85℃,可定制长度
典型应用:乐器拾音器
